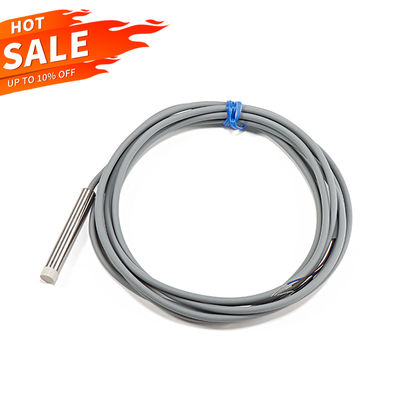

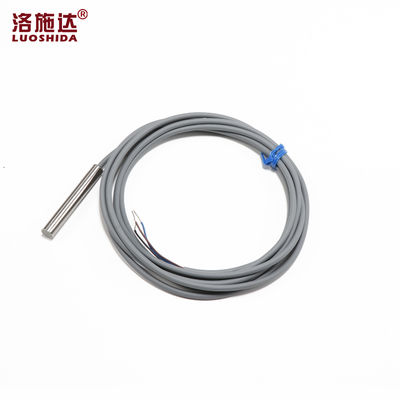

Loushida D6.5 3-wire 1mm 8mm Non/flush Mount Capacitive Proximity Sensor with NPN/PNP Outputs for Metal Detection

Specification of the sensor :
| D6.5 3-wire Capacitive Proximity Sensor | ||
| Size | D6.5*45 | D6.5*45 |
| Mounting | shielded | Non-shielded |
| Sensing Distance Sn(mm) | 1mm | 2mm |
| Housing Material | Stainless steel | Stainless steel |
| With or Without LED | ● with yellow LED | |
| Operating Voltage | 10-30VDC | |
| Ripple | <10% | |
| No Load Current | <10mA | |
| Max.Load Current | 150mA | |
| Leakage Current | <0.01mA | |
| Voltage Drop | <1.5V | |
| Switching Frequency | 100Hz | 80Hz |
| Response Time | 1.5ms | 1.5ms |
| Switching Hysteresis | <15%(Sr) | |
| Repeat Accuracy | <5.0%(Sr) | |
| Protection Category | IP67 | |
| Operating Temperature | -25°C... +70°C | |
| Temperature Drift | <15%(Sr) | |
| Short Circuit Protection | YES | |
| Overload Trip Point | 280mA | |
| Sensing surface material | PBT | |
| Weight | About 29.9g | About 28.7g |
| Certificates | CE RoHS | |
| Connection | D3.0mm 2M PVC cable 3*0.15mm | |
![]()
